高精度中心壓筒設計保證了印刷套準精度，結構緊湊，操作方便。全伺服自動控制進一步提升了機器的套準精度、工藝的靈活性及承印物的多元化。機器運轉或停機時，可進行套準調節，優異的套準精度，無級調節的長度套準，各工作位置的橫向套準可以±5毫米進行調節。本機可完成工藝：多層標簽、正反面印刷10色任意組合、局部除膠、前后中全息定位冷燙、二次自動定位模切、連線覆轉印膜及無膠光膜。
Technology Parameters

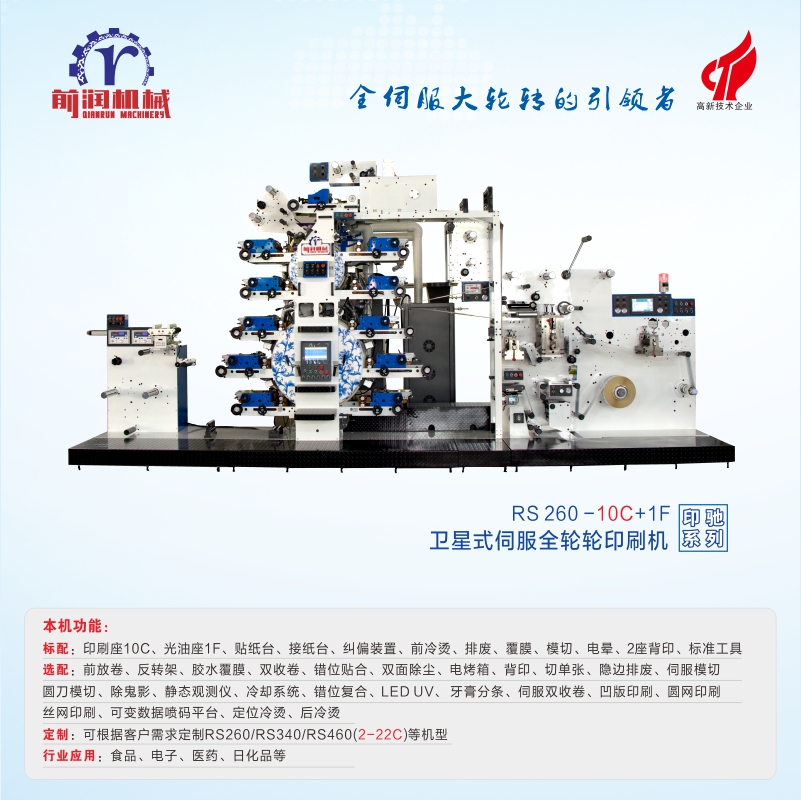

| Model | RS260-10C+1F |
| Number of Printing Polor | 10 color embossed + flexo glazing |
| Max. Web Width(mm) | 260(10.25 inch) |
| Max. Printing Width(mm) | 254(10 inch) |
| Max Printing Length(mm) | 457.2 |
| Max Speed | 100m/min |
| Ink | UV off set ink/UV flexo ink |
| Centre Impression Drum | ø1300mm rubble-lined |
| Max. Dia of Unwind Roll | 800mm |
| Max. Dia of Rewind Roll | 800mm |
| Machine Size(L*W*H:m) | 7*1.8*2.25 |
| Net Weight(Kgs) | 9000 |
| Power(V/Kw) | 3phase 380V, 45KVA, 50/60HZ |
| Air Pressure | 0.6Mpa(6kgf/cm ) |
| Operation Noise | 〈85db |
Basic Information
| Function |
| Unwinder-Printing(10color, 2color printing on glue side,4color for both side)-gold stamp-Lamination-Die cuter-Waster- Rewinder |
| Standard Accessories |
| 1.Letter press print station |
| 2.Flexo varnish surface coating |
| 3.UV dryer |
| 4.Printing cylinder |
| 5.Egdes trimming device |
| 6.Rotary die cutter |
| 7.Corona theater |
| 8.Electrostatic eliminator |
| 9.Lamination |
| 10.Front cold stamping |
| 11.Waster device |
| 12.Back printing unit |
| 13.Glue side printing unit |
| Optional Configurations |
| 1.After cold stamping |
| 2.Static state observation system |
| 3.Cooling system |
| 4.Optional 2-22 color |
| 5.Digital printing for barcode |
| 6.Rotary screen printing device |
| Features |
| 1.Compared with common label printing machines, RS260-10C+1F can reach a high speed of 100M/min andl with more precise positioning and more accurate color printing. Advanced ink distribution ensures more even coloring. |
| 2.With both flatbed die cutting and rotary die cutting systems. |
| 3.Koldfoil stamping in the front, middle, back, and local or positioned stamping can be completed synchronously and quickly. |
| 4.Multi-color printing on backside can be realized by optional backside printing device. |
| 5.With function of spacer and local degumming, base paper stripping off, gelatinizing and sealing. |
| 6.HP inkjet technology is applied in bar code label designing. |
| 7.Optional inspection machine will feed and inspect labels automatically, which saves labor costs. |
| 8.With Corona surface processor. |
| Printing Materials |
| Adhesive Tape、Washing Mark、Art Paper、PET、PE、PVC、PP、Synthetic Paper、Protective Film、Pearlescent Film、Dumb Silver、Laser paper |
| Industry Appilcations |
| Cosmetic Label、Food Label, Water Label, Drug label, Electronic Label，Bar Code Label，Toy Label，PVC Label，Reverse Stickers |
| Customization |
| According to customer's requests, RS260 can be customized from 2 colors to 12 colors or other models like RS320, RS400, RS460 |
